Features
Track mapping with lap and segment times
Acceleration and lateral g-forces
Data from optional inputs
Engine RPM
Battery voltage
Vehicle speed
Stop guessing and start winning! The new G2X GPS Data Acquisition System from Racepak and MSD Ignition can help you improve your lap times by showing you how you and your car react in race situations.
The G2X provides accurate speed, lap and segment times through the use of Global Positioning System satellites. This means there's no need to set up track-side beacon transmitters, receivers, or their associated wiring.
The technology employed in the G2X has been utilized for years in various forms of Motorsports. We have logged thousands of on-track laps in creating an economical data logger that is both rugged and dependable in a wide variety of environments. Information about braking, steering and throttle can be easily added through Racepak's V-Net Technology.
After running a few laps, simply remove the Compact Flash card from the G2X and download the information to your PC. Racepak's Datalink software is easy to view and navigate. Once a track map is created, you'll always have it on file to use at other events.
Detailed Stats
Weight:
Logger only - 13oz

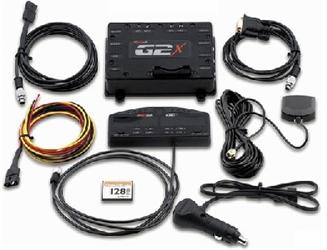

Entire G2X kit: 1lb 13oz (.81 kilo)
Memory:
128MB compact flash - up to 512 MB may be utilized
Approximately 25 hours of data (with no external sensors in use)
Automated Logging Process:
Logging starts at 25 MPH (40 KPH) which may be changed by user
Logging stops when no speed is detected for 30 seconds or greater
Auto-writes consecutively numbered runfiles. Does not overwrite existing data
Allows user to make multiple runs without downloading data
Internal Sensors:
100Hz Lateral and Longitudinal Accelerometers
4 Hz GPS board combines with 100Hz accelerometer data for mapping data
Battery Voltage
Engine RPM (with appropriate tach signal)
Power:
12-18VDC / 800-900Ma
Sensor Inputs:
12 total external Vnet sensors or gauges connected via the AUX Input
Vnet sensors may be analog, RPM or any combination of both
1 Display Dash Input
1 External Secondary RPM Input (wheelspeed or when utilizing GMR)
1 Power / Tach Input
1 EFI Input (See Vnet Sensor Page)
1 GPS Antenna Input
1 External Beacon Receiver Input
Engine RPM Signal requirement:
50% duty cycle, square wave tach output signal (aftermarket ignition box type)
If this type of signal is not available, utilize the Racepak GRM pickup
Exterior LED Displays:
2 GPS Satellite LED Indicators
1 Compact Flash Card LED Indicator
1 Power/Processor LED Indicator
GPS Antenna and Cable:
1" (25mm) x 1" (25mm) Size
Magnetic Base
SMA Connector
Application: Universal
