Артикул: 01-23-62-265-BL
Производитель: MAGNUSON
Товар на складе
Intercooler System
Twin dual-pass charge-air-coolers utilise Formula-1 racing thermal-control technology
Back-to-back testing verifies the intercooler system is superior Quick-connect fittings for easier installationUpgrade Options
Drive pulley options available for high-boost applications
Included Components

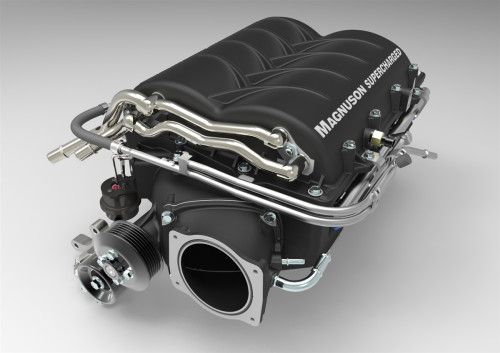

6th Generation TVS2300 Heartbeat Supercharger with integral bypass valve
Patented cast-aluminum high-velocity-port intake manifold Twin dual-pass charge-air-coolers utilise Formula-1 racing thermal-control technology 8 high-flow fuel injectors GM LS9 fuel rail system Padded Box and UPS 2-Day shipping label for computer return Large front-mounted heat exchanger All necessary fittings, lines, belts, and hardware requiredWarranty
See Warranty page for further information
Maintenance
Sealed supercharger rotor assembly requires no maintenance or oil change
Emissions Status
CARB certified E.O.# D-488-34
50 State legalTools Required
Metric wrench set
1/4in. - 3/8in. and 1/2in. drive metric socket set (Standard and Deep) 3/8in.and 1/2in. drive foot-pound and inch-pound torque wrenches Belt tensioner wrench Phillips and flat-head screwdrivers 1/2in. breaker bar Fuel line quick disconnect tool (included in kit) Small or angled 3/8in. drill Drain pan Hose cutters Hose clamp pliers Safety glasses Hammer Compressed air Blow gun air tool Metric Allen socket set 3/8in. drive Shop vacuum cleaner Blue Loctite Right Angle drill for pinning crank pulley (when required) Helpful Tool: Air or electric impact wrenchInstallation Manual
https://www.magnusonsuperchargers.com/v/vspfiles/downloadables/manuals/89-89-57-025_RevG_2008-2013_C6_LS3_HeartBeat_6-2L_Corvette.pdf
